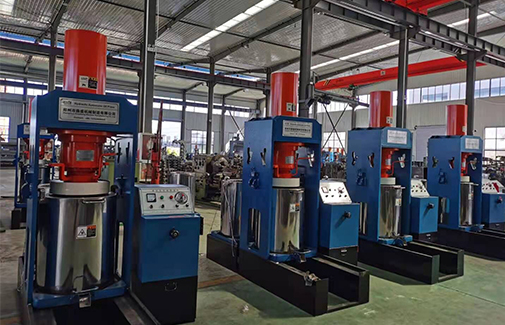

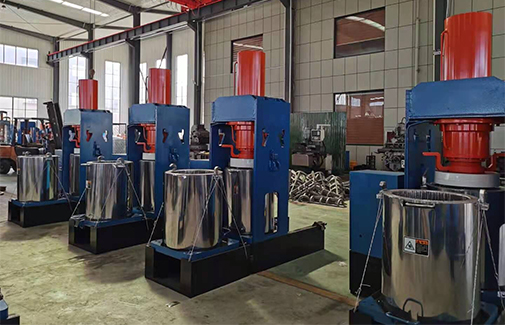

6YY-280D Hydraulic oil press
New model 6YY-280D Hydraulic oil press machine is designed for producing high quality edible oil and health care oil, such as sesame, peanut, walnut, cashews, pine nuts, almond oil. Capacity: 100kg per hour, safety and healthy, make an inquiry now.
Share With:
Description
6YY-280D Hydraulic Oil Press Machine with High Efficiency
StructureThis hydraulic oil press machine is mainly composed of stainless steel frame, cylinder, hydraulic station, manual reversing valve, oil barrel, tray and electrical control part.
Working principle
New model hydraulic oil pressers is based on the principle of liquid static pressure transmission to the hydraulic pressure as the transmission medium to squeeze the oil and then pressed out of a squeezing oil equipment. This machine is a closed circuit system composed of two parts of the hydraulic system and the oil press mainframe. Hydraulic press squeezing method is a purely physical method of squeezing oil.
Application
The technical application of oil mill efficient intelligent integration is popular in the main oil production areas of the world. The oil mill is widely used in the squeeze of oil crops, such as peanut, soybean, rapeseed, sunflower, flax, walnut, suzi, almond, tea seed, cottonseed, sesame, corn germ,etc.
Parameters
| Model | Capacity (L/H) |
Power （KW） |
Barrel Height (mm) |
Stroke Height （mm） |
Diameter of Barrel (mm) |
Working Pressure (Mpa) |
Working Thrust (T) |
Weight (KG) |
Overall Dimensions(L*W*H) (mm) |
| 6YY-280D | 110 | 3 | 800 | 800 | 420 | 60 | 308 | 2600 | 2020*1300*2550 |
Features
1
The hydraulic oil press adopts fully automatic system, easy to operate, safe and stable, and it only takes a few minutes to complete the finished product from feeding.
2
It can be widely used in different kinds of raw material, such as soybeans, peanuts, rapeseed, tea seeds, sesame, flax, etc.
3
The main body structure is made of high-carbon steel, with high hardness, high strength and good wear resistance. It is suitable for high temperature and high pressure continuous operation and improves the service life of the oil press.
4
The oil output rate is high, and the principle of multi-stage propulsion and gradual pressurization is adopted to rapidly increase the pressure of the press chamber and make the oil fission and separation at one time.
5
The infrared temperature control system is adopted to automatically control the pressing temperature and water content, so that the oil can directly soften and activate the oil molecules, the pressing is stable, and the oil output rate is greatly improved.
6
Only physical pressing is used, the cold pressing process will not produce high temperature, will not damage the organic components of the oil, vacuum filter the residue, the oil output is high in purity, and the product quality is good.
Edible Oil Processing With Dingsheng Machine
Dingsheng Machine is a leading manufacturer specializing in edible oil processing solutions and equipment in China, we provide complete plant solutions for oilseeds pretreatment, solvent extraction, refining and deep processing. More than 20 years’ experience, we are committed to optimizing technology processes, engineer design, project management, installation and training, help customer build the oil mill over the world. When you plan to build an vegetable oil processing plant, please contact us today to get the quote.
Email: company@dingmachinery.com, whatsapp: +86-159 3716 3029.
Email: company@dingmachinery.com, whatsapp: +86-159 3716 3029.
