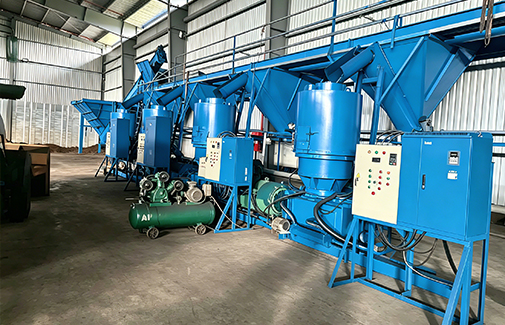

Cashew Nut Shell Oil Pressing Plant

Dingsheng Machine provides heavy-duty cashew nut shell (CNS) oil pressing solutions for large-scale industrial processing enterprises. The system is designed for a capacity range of 50 to 300 tons per day and adopts twin-screw pressing technology, specifically engineered to handle the unique challenges of cashew shell materials.

Send Email

Chat Now

Share With:

Applications Process Benefits Contact Us Related Products

Applications

Cashew Nut Shell (CNS) Oil Pressing Solution

Cashew nut shells contain 30–45% oil, known as Cashew Nut Shell Liquid (CNSL), which is one of the most valuable industrial vegetable oils. Although CNSL is not edible, it has extremely high industrial value and is widely used in brake linings, friction materials, resins, coatings, lubricants, and chemical products. It is a high-value non-edible industrial raw material with strong market demand.

Due to the hard structure and high resin content of cashew shells, the pressing process requires heavy-duty equipment. The oil extraction section adopts a twin-screw oil press specially designed for high-temperature and high-resistance materials, ensuring stable operation and high oil yield. The pretreatment section is similar to that of common oilseeds, ensuring efficient and stable preparation before pressing.

Process

Capacity Range: 50–300 TPD

Suitable Processing Methods: Mechanical Oil Pressing Hot Pressing (Necessary process for CNSL extraction), Continuous Industrial Processing.
Applicable Raw Materials: Cashew Nut Shells, Cashew Shell Kernels (CNSL-bearing materials)
Final Products: Crude Cashew Nut Shell Liquid (CNSL), Shell Residue Cake (Industrial fuel or further processing use)

Cashew Shell Oil Processing Flow:
Cashew shells→ Cleaning→ Crushing→ Preheating / Conditioning→ Twin-screw pressing→ Crude oil filtration→ Crude cashew shell oil + residual shell cake

Pretreatment Process

The pretreatment process for cashew shells is similar to that of other common oilseeds (soybean, sunflower seed, palm kernel, and jatropha). However, the equipment must be manufactured using wear-resistant and corrosion-resistant materials.

1. Cleaning: Vibrating screen + magnetic separator
Removes stones, metals, dust, and shell impurities.

2. Crushing: Heavy-duty crusher
Breaks cashew shells into suitable particle sizes.

3. Flaking: Heavy-duty flaking machine
Produces thin flakes to break oil cells and improve oil release.

4. Cooking / Conditioning:
Controls moisture and temperature to increase oil yield.

5. Drying: Rotary dryer
Reduces moisture content to achieve optimal pressing performance.

Main Equipment
Seed cleaning machine
Crusher
Preheater / Cooker
Twin-screw oil press
Oil filter machine
Conveying system
Steam generator
PLC automatic control cabinet

Benefits

Benefits of our professional solutions for Cashew Nut Shell oil processing equipment

Twin-Screw Oil Press: The system adopts a heavy-duty twin-screw oil press, specially designed for high-hardness and high-resin cashew shell material, ensuring stable and efficient oil extraction.

High Oil Yield & Stable Performance: The optimized pressing structure ensures high extraction efficiency of Cashew Nut Shell Liquid (CNSL) and long-term stable operation.

Dust Control: Cashew shell dust is highly irritating; therefore, a fully enclosed system is required to ensure safe and clean operation.

Corrosion Resistance: All surfaces in contact with cashew shells must be made of stainless steel or treated with special anti-corrosion coatings.

Low-Temperature Pressing: Excessive temperature can reduce the quality of Cashew Nut Shell Liquid (CNSL), so controlled low-temperature processing is essential.

Continuous Industrial Operation: Equipped with automatic feeding and stable discharge systems, supporting large-scale continuous production.

Energy-Saving Design: Efficient heating and transmission systems reduce energy consumption and operating costs.

PLC Automatic Control: An intelligent PLC system enables automatic operation, monitoring, and process adjustment.

With Dingsheng Machine, we provide automatic, continuous and mechanized production conditions, which increased capacity while also reducing the level of product waste the production of cashew nut shell. The process design of the whole cashew nut shell oil processing project is reasonable, compact and elegant, to achieve lower overall operational costs and higher economic benefits.

Our technical experts provide technical guidance, service and training from equipment selection to proposal design when you have a project plan for the cashew nut shell (CNS) oil processing plant. Contact us now to learn more about how our solutions and equipment can help you achieve long-term, reliable, and more profitable operations.
