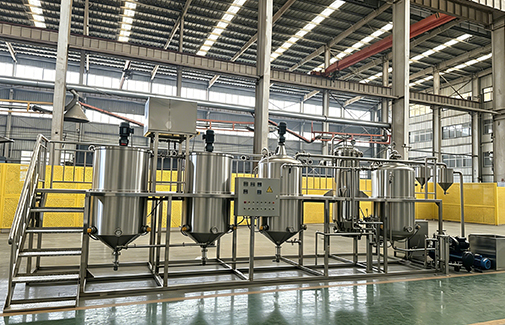

Coconut Oil Processing Plant | 10–500 TPD

Dingsheng Machine provides professional coconut oil processing plants designed for efficient extraction and refining of coconut oil from copra or fresh coconuts. The complete production line can be customized according to customer requirements, with capacities ranging from 10 to 500 tons per day. It is suitable for edible oil factories, industrial oil processing plants, and virgin coconut oil (VCO) projects.

Send Email

Chat Now

Share With:

Applications Process Benefits Contact Us Related Products

Applications

Coconut Oil Processing Plant | 10–500 TPD
Dingsheng Machine provides professional coconut oil processing plants designed for efficient extraction and refining of coconut oil from copra or fresh coconuts. The complete production line can be customized according to customer requirements, with capacities ranging from 10 to 500 tons per day. It is suitable for edible oil factories, industrial oil processing plants, and virgin coconut oil (VCO) projects.

Coconut oil is widely used in food processing, cosmetics, pharmaceuticals, soap manufacturing, biodiesel, and chemical industries. Depending on the raw materials and final product requirements, the production line can produce crude coconut oil, refined coconut oil, or virgin coconut oil (VCO).

The coconut oil processing system features stable operation, high oil yield, low energy consumption, and high automation, making it an ideal solution for medium and large-scale coconut oil production projects.

Capacity Range: 10–500 TPD
Suitable Processing Methodse: Mechanical Oil Pressing, Pre-pressing & Solvent Extraction, Cold Pressing (Virgin Coconut Oil), Hot Pressing, Oil Refining Process,
Applicable Raw Materials: Copra,Dried Coconut Kernel, Coconut Cake (for secondary extraction).
Final Products: Crude Coconut Oil, Refined Coconut Oil, Virgin Coconut Oil (VCO), Coconut Cake / Coconut Meal.

Process

Coconut Oil Processing Flow
There are generally two methods for producing Virgin Coconut Oil (VCO):

Wet Process:

Fresh Coconut→ Dehusking→ Paring→ Washing & Bleaching→ Sterilization→ Grinding→ Coconut Meat Pressing→ Vibrating Filtration→ Cold Pressing / Coconut Milk Extraction→ Separation / Fermentation / Centrifugation→ Virgin Coconut Oil Storage
---
Dry Process (Oil Processing):
Copra / Dried Coconut→ Dehusking→ Paring→ Washing & Bleaching→ Sterilization→ Grinding→ Continuous Drying→ Cold Pressing→ Crude Oil Filtration→ Oil Storage

Pretreatment Process Description

1. Dehusking: The outer coconut husk can be removed manually or by using a coconut dehusking machine.

2. Shelling: A shelling machine is used to remove the hard coconut shell without damaging the coconut meat.

3. Paring: The brown outer skin of the coconut meat is removed using a paring machine.

4. Washing & Bleaching: The pared coconut meat is washed in hot water for several minutes to improve cleanliness and appearance.

5. Sterilization: The cleaned coconut meat is sterilized to ensure hygienic processing conditions.

6. Coconut Meat Grinding: The pretreated coconut meat is ground into fine particles to improve juice extraction efficiency.

7. Coconut Milk Extraction: The ground coconut material is fed into a juice extractor or twin-screw press machine to extract coconut milk. The extracted coconut milk is collected and filtered to remove solid impurities. The pressed residue can be dried to produce desiccated coconut.

8. Filtration & Centrifugation: A vibrating filter removes larger particles from the coconut milk. A centrifuge is then used to separate the oil and skimmed milk, as coconut milk is naturally an oil-in-water emulsion. Finally, a tubular filter (microfilter) further removes fine impurities to obtain pure virgin coconut oil.

Benefits

Benefits of our professional solutions for Coconut oil processing equipment

High Oil Yield: Optimized processing technology ensures efficient oil extraction with low residual oil loss.

Multiple Processing Options: Suitable for producing crude coconut oil, refined coconut oil, and virgin coconut oil (VCO).

Stable Continuous Operation: Designed for continuous industrial production with stable performance and low maintenance costs.

Energy-Saving Design: Efficient heating and heat recovery systems significantly reduce steam and electricity consumption.

PLC Intelligent Control: The automatic control system enables easy operation, real-time monitoring, and stable process control.

Food-Grade Stainless Steel Structure: All key oil-contact parts are made of high-quality stainless steel, ensuring hygiene, corrosion resistance, and long service life.

Wide Industrial Applications: Coconut oil is widely used in edible oil production, cosmetics, pharmaceuticals, soap manufacturing, biodiesel, and chemical industries.

With Dingsheng Machine, we provide automatic, continuous and mechanized production conditions, which increased capacity while also reducing the level of product waste the production of coconut. The process design of the whole coconut oil processing project is reasonable, compact and elegant, to achieve lower overall operational costs and higher economic benefits.

Our technical experts provide technical guidance, service and training from equipment selection to proposal design when you have a project plan for the ccoconut oil processing plant. Contact us now to learn more about how our solutions and equipment can help you achieve long-term, reliable, and more profitable operations.

Edible Oil Processing With Dingsheng Machine

Dingsheng Machine is a leading manufacturer specializing in edible oil processing solutions and equipment in China, we provide complete plant solutions for oilseeds pretreatment, solvent extraction, refining and deep processing. More than 20 years’ experience, we are committed to optimizing technology processes, engineer design, project management, installation and training, help customer build the oil mill over the world. When you plan to build an vegetable oil processing plant, please contact us today to get the quote.
